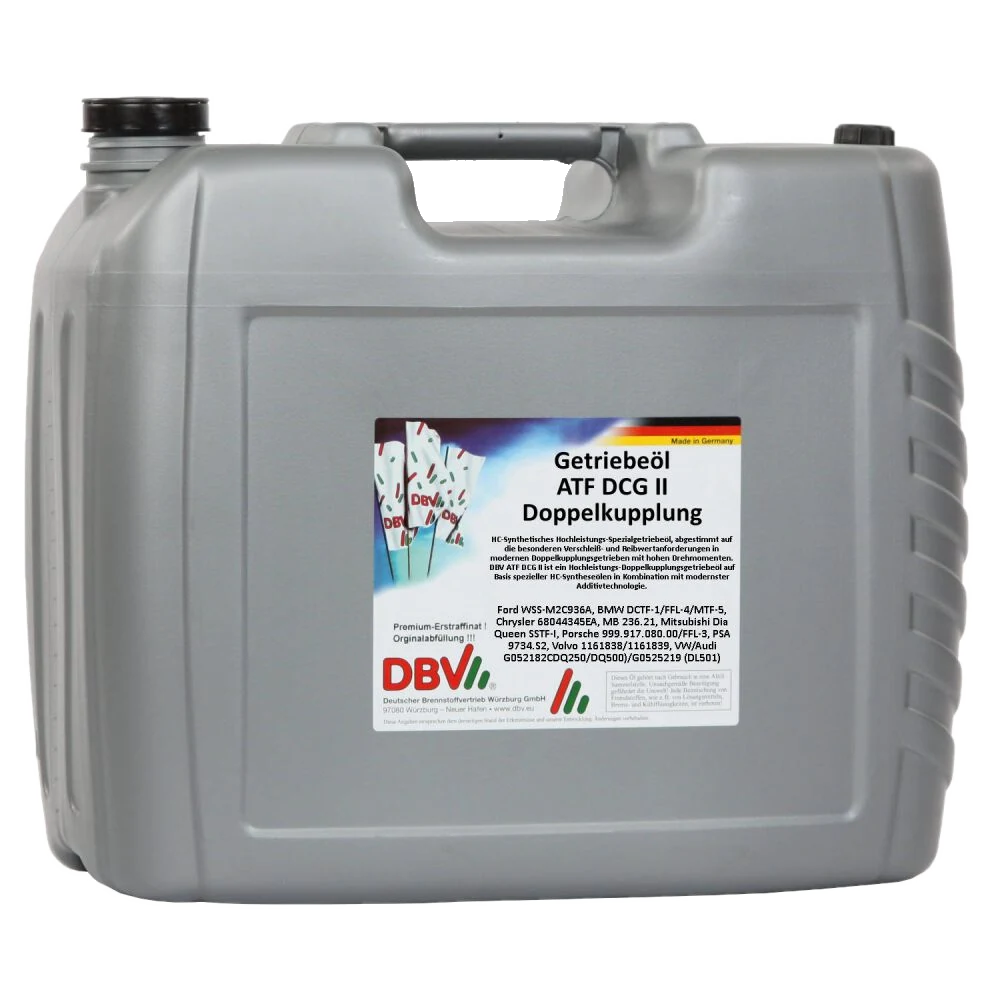

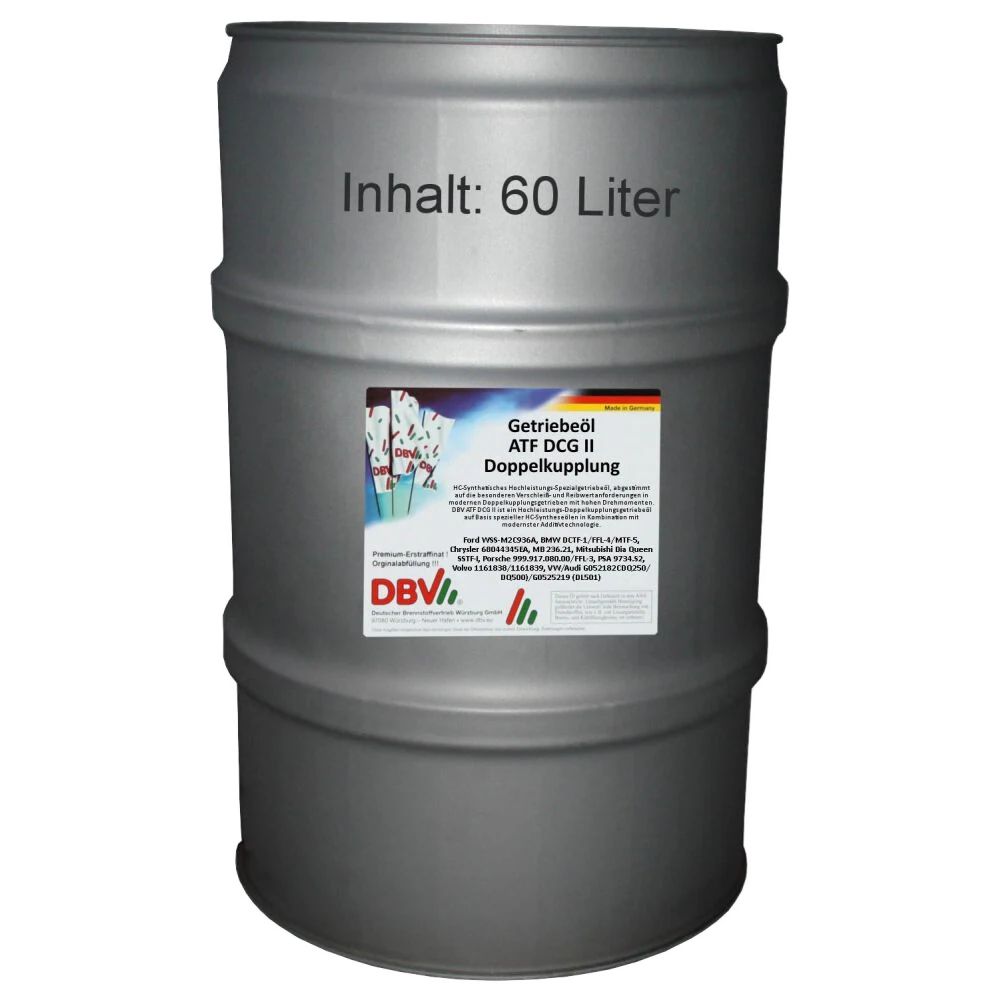

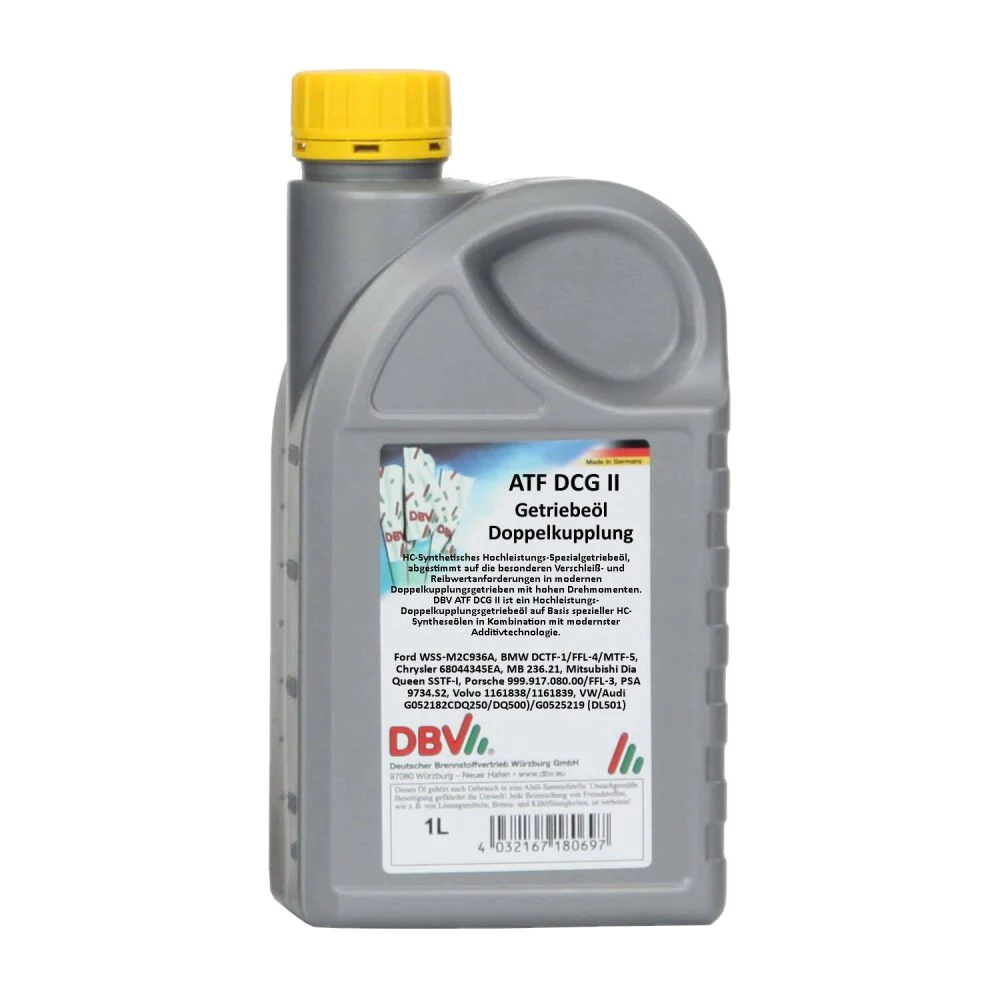

ATF DCG II for modern dual-clutch transmissions with stable friction performance, fast shifting, and high load reserve.
ATF DCG II is a special fluid for modern high-torque dual-clutch transmissions. It is designed for DCT/DSG systems where shift speed, friction stability, and component protection place very different demands compared to conventional torque converter automatics or CVT transmissions.
The HC-synthetic base oil and carefully balanced additive package ensure that sporty shifting, low friction vibration, and high load stability work together smoothly. This is crucial, especially for high-performance dual-clutch gearboxes.
For suitable VW, Audi, BMW, Mercedes, Porsche, and other DCT applications, this product is a specialized solution with a clear focus on modern dual-clutch technology.
Suitable for modern dual-clutch transmissions where OEM fill specifications such as VW G 052 182/512/529, BMW DCTF/FFL, MB 236.21/236.22/236.24/236.25, Porsche FFL, Renault EDC, or other listed DCT specifications are required.
Is ATF DCG II suitable for torque converter automatics?
No, it is specifically formulated for dual-clutch transmissions.
Why do DCT/DSG transmissions require a special fluid?
Because clutch design, shift strategy, and friction requirements differ significantly from conventional automatics.
Which brands is this fluid suitable for?
Mainly for VW/Audi, BMW, Mercedes, Porsche, Renault, and other manufacturers with compatible DCT approvals.
| Property | Method | Unit | Value |
|---|---|---|---|
| Density at 15 °C | ASTM D-7042 | g/ml | 0.849 |
| Color | visual | - | amber |
| Kinematic viscosity KV 100 | ASTM D-7042 | mm²/s | 7,24 |
| Kinematic viscosity KV 40 | ASTM D-7042 | mm²/s | 36,3 |
| Viscosity index | ASTM D2270 | - | 168 |
| Flash point | ASTM D-92/DIN EN ISO 2592 | °C | >200 |
| Pour point | ASTM D-97/DIN EN ISO 3016 | °C | -36 |
| CCS | ASTM D-5293 | cP @ °C | 5475 @ -35 |
All types of containers should preferably be stored under cover. If stored outdoors without shelter, containers should be kept lying down to prevent water ingress and to preserve label readability. Products should not be stored at temperatures above 60 °C and must be protected from direct sunlight and frost.
